Electrofusion is the answer where there is no room to swing a butt fusion machine — in trenches and on service connections. Our fittings carry a barcode with the correct fusion time and voltage, so any standard EF control unit reads the parameters and logs the joint.

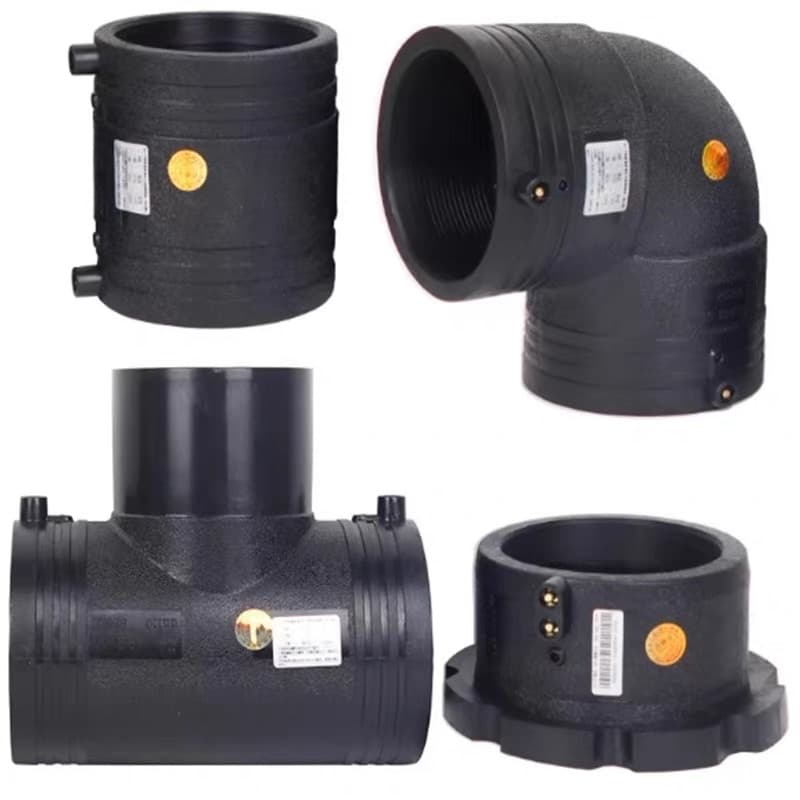

We supply couplers, reducing couplers, elbows, equal and reducing tees, tapping tees, saddles and end caps from DN20 to DN630, in water grades. Fusion indicators are visible on both sides, and cold-zone geometry is designed so operators can verify the joint without dismantling it.
Key features
- DN20–DN630 couplers, elbows, tees, tapping tees, saddles and caps
- Barcode fusion data readable by any standard EF control unit
- Pressure and non-pressure grades, both traceable to the resin lot
- Visible fusion indicators on both sides of the joint
- Individually bagged to keep fusion surfaces clean until installation
Specifications
| Material | PE100 |
|---|---|
| Size range | DN20 – DN630 |
| Voltage | 39.5 V / 40 V nominal |
| Standards | ISO 8085, EN 12201-3-3 |
| Service | Water, drainage, industrial |
