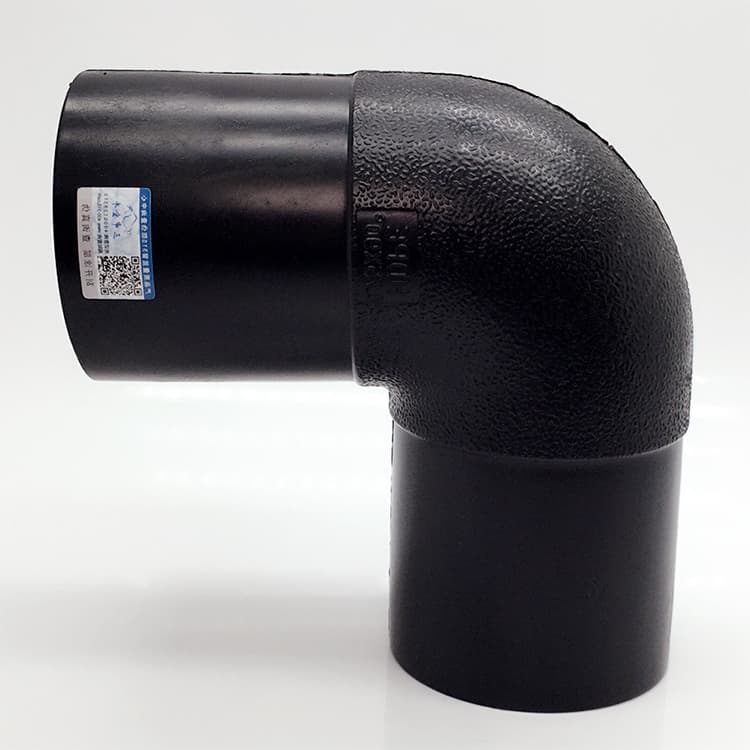

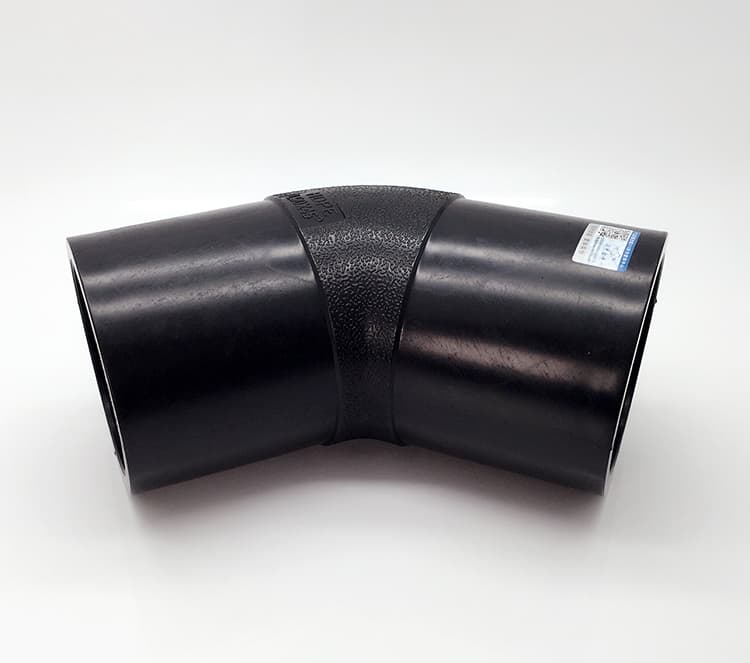

Butt fusion fittings are moulded in PE100 up to DN630 and fabricated from pipe above that, giving a continuous range to DN1600 with matched SDR. Moulded fittings carry the same pressure rating as the pipe; fabricated fittings are de-rated per the applicable standard and marked accordingly, so the design engineer always knows what they are getting.

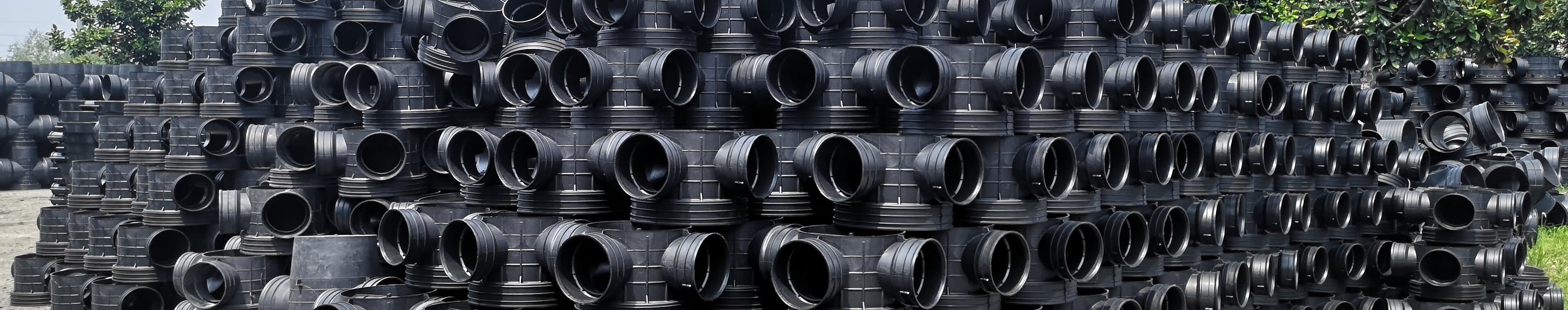

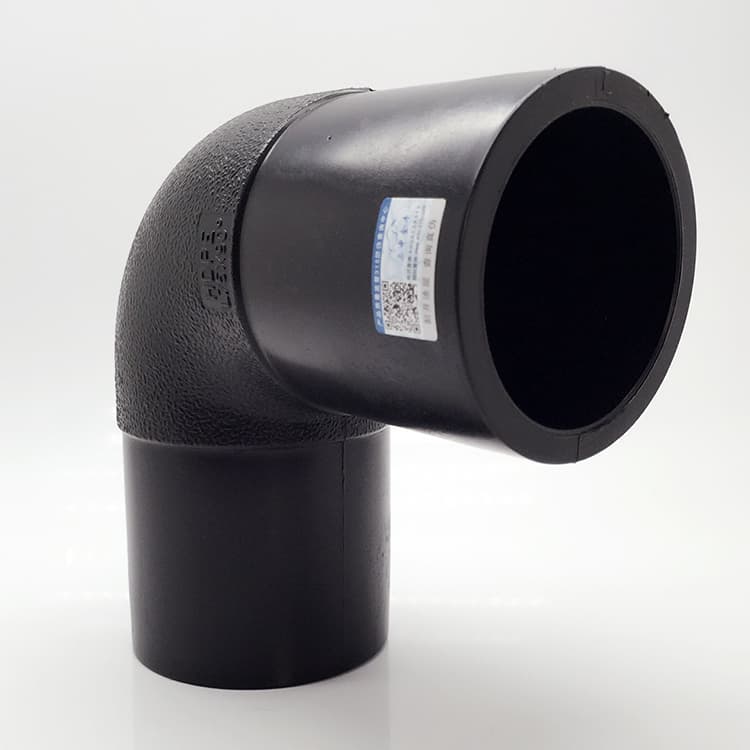

Every fitting is dimensionally inspected against the drawing, and fabricated items are ultrasonically or hydrostatically checked before release. Bulk packing is per-size in cartons or pallet boxes with a packing list keyed to the shipping mark.
Key features
- Moulded PE100 fittings to DN630, fabricated to DN1600

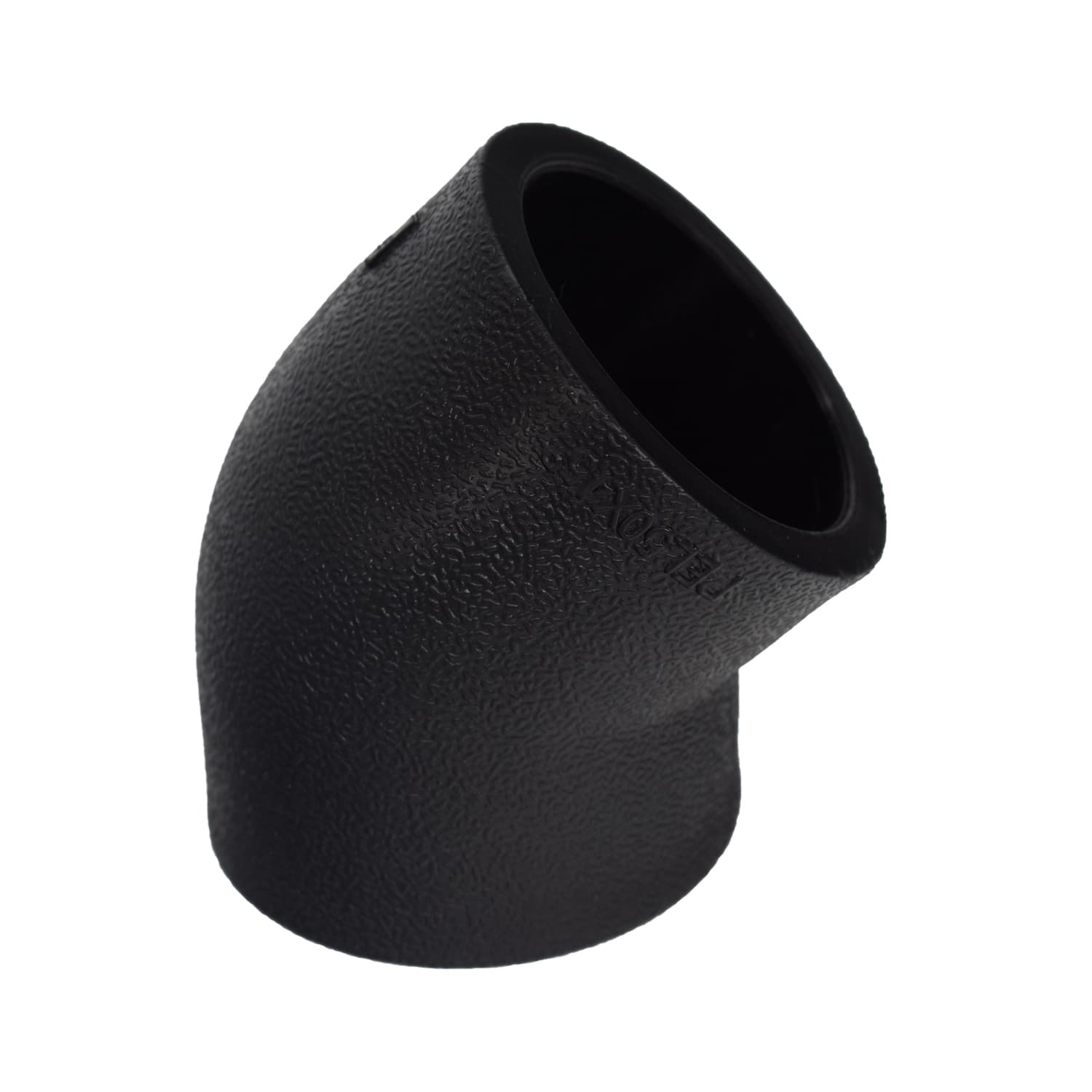

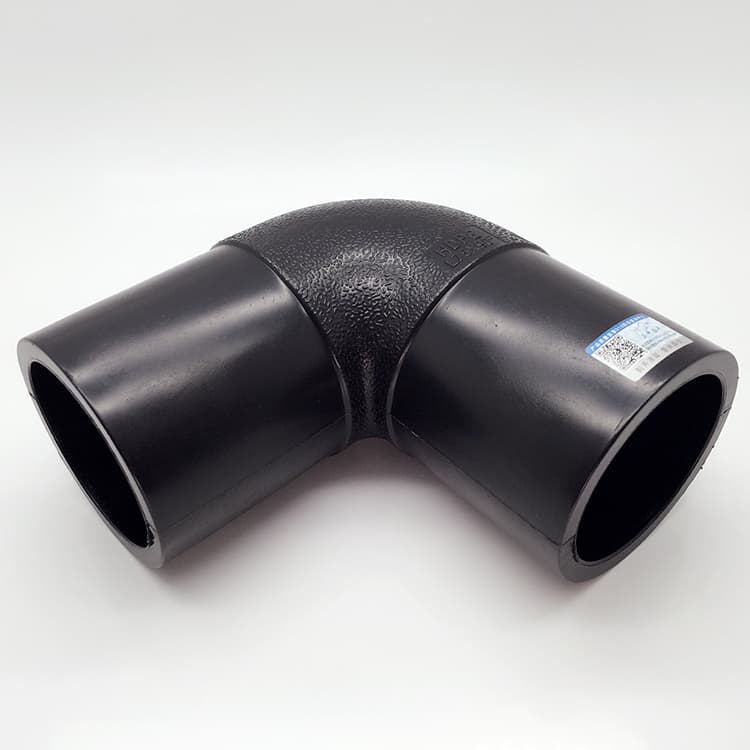

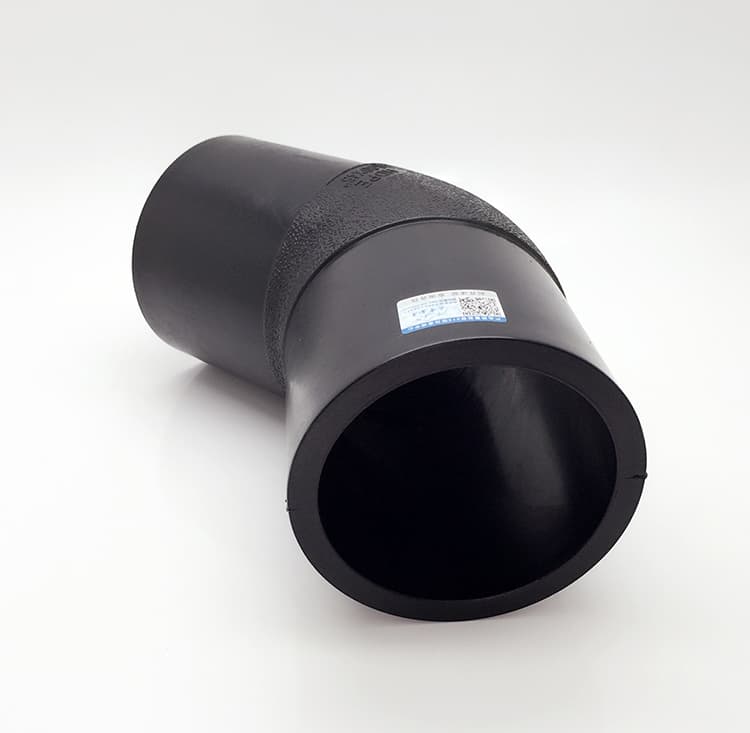

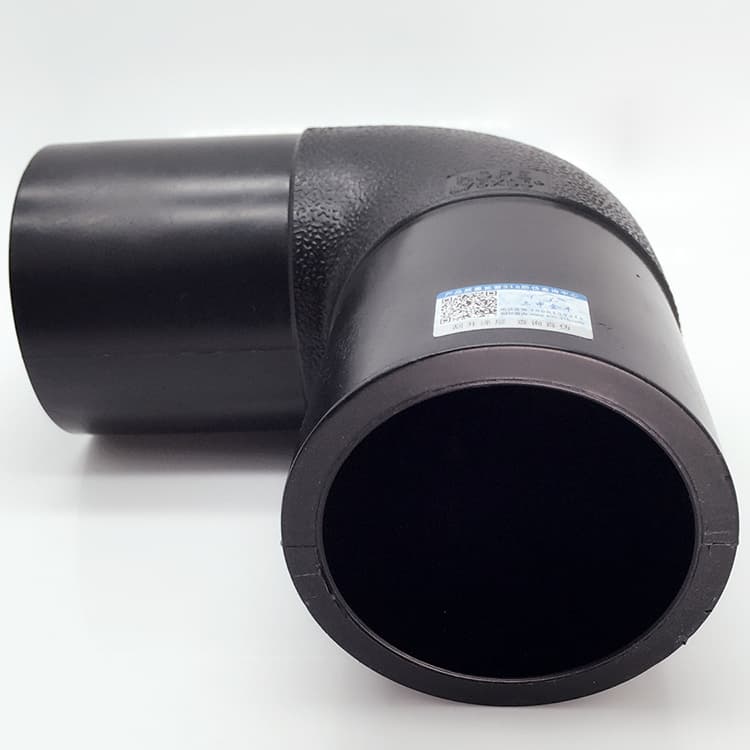

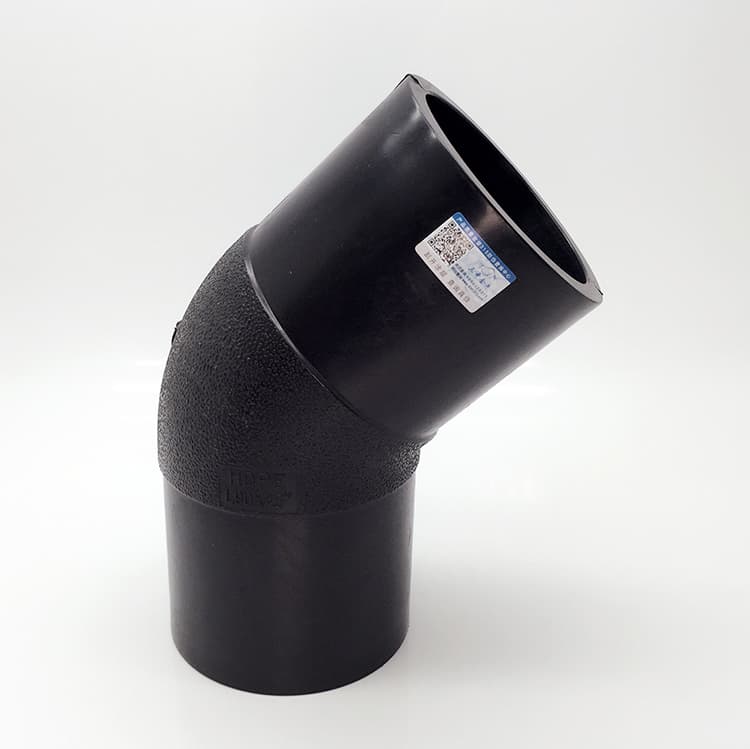

- 45° and 90° elbows, equal and reducing tees, concentric reducers, end caps
- SDR 7 through SDR 26 to match the pipe on the same job
- De-rating clearly marked on fabricated items
- Dimensional inspection and pressure testing before release
Specifications
| Material | PE100 |
|---|---|
| Size range | DN20 – DN1600 |
| SDR | SDR 7 – SDR 26 |
| Standards | ISO 4427-3, EN 12201-3 |
| Types | Elbow, tee, reducer, end cap, stub end |
