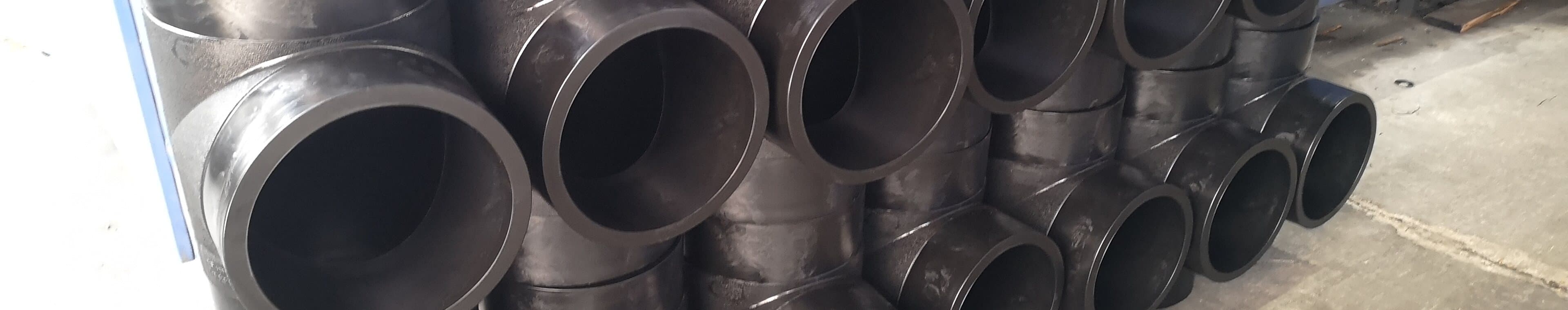

When the catalogue runs out, fabricated HDPE fittings start. We cut, mitre and extrusion-weld pipe into bends of any angle, wyes, laterals, manifolds and reducing assemblies up to DN1600, working from your DWG, PDF or a dimensioned sketch on the back of an email.
Fabricated fittings are de-rated per ISO 4427-3 and marked with the resulting pressure class. Welders are qualified to recognised procedures, and each item is inspected and — where the specification calls for it — hydrostatically tested before it is crated.
Key features

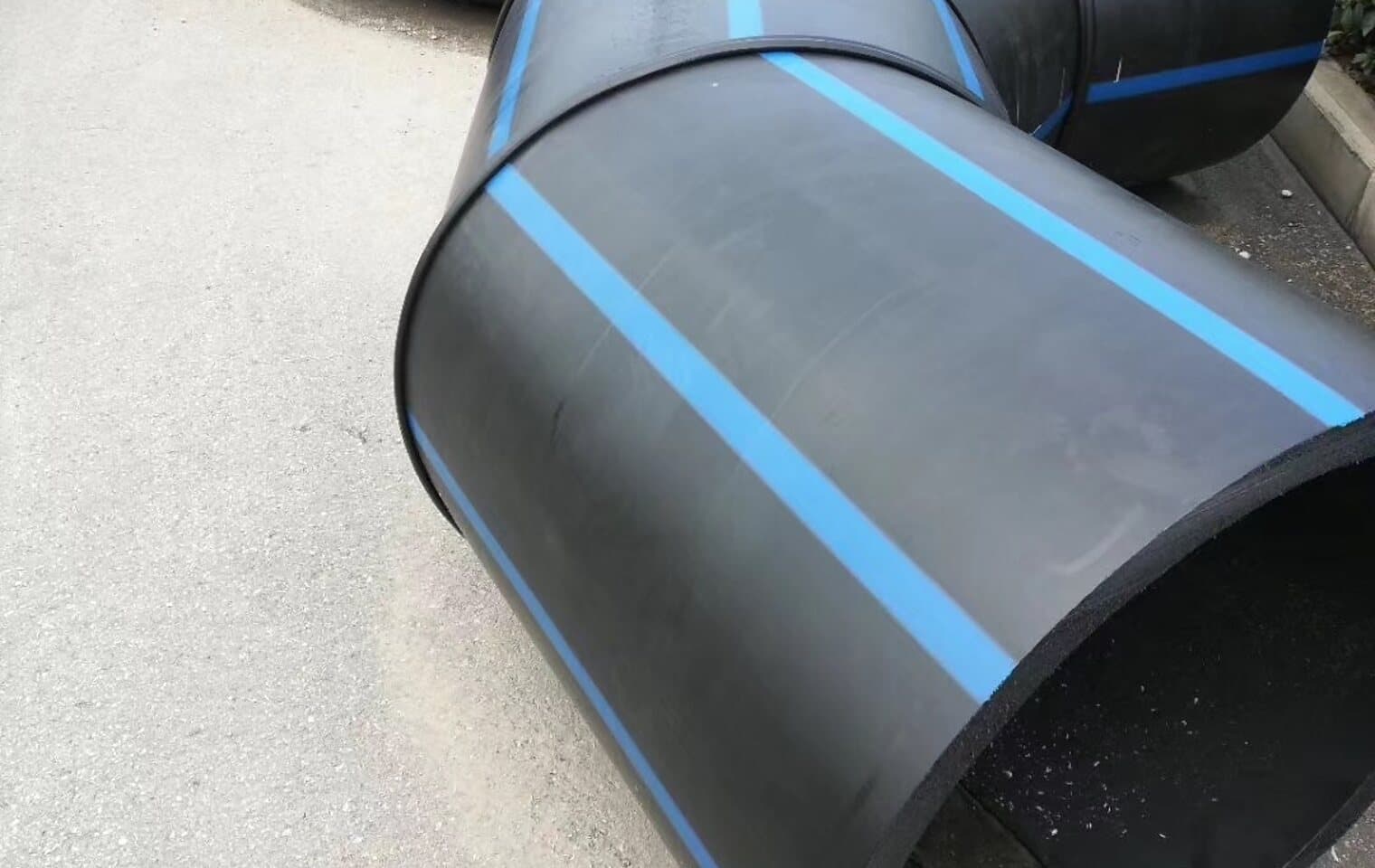

- Any angle mitred bends, wyes, laterals, manifolds and headers
- Sizes to DN1600, SDR matched to the pipeline
- Built from DWG, PDF or dimensioned sketch, with drawing approval before cutting
- De-rating calculated and marked per ISO 4427-3
- Optional hydrostatic testing with witnessed reports
Specifications
| Size range | DN90 – DN1600 |
|---|---|
| Welding | Butt fusion and extrusion welding, qualified procedures |
| Lead time | 7 – 20 days depending on complexity |
| Documentation | Fabrication drawing, weld log, test report |
